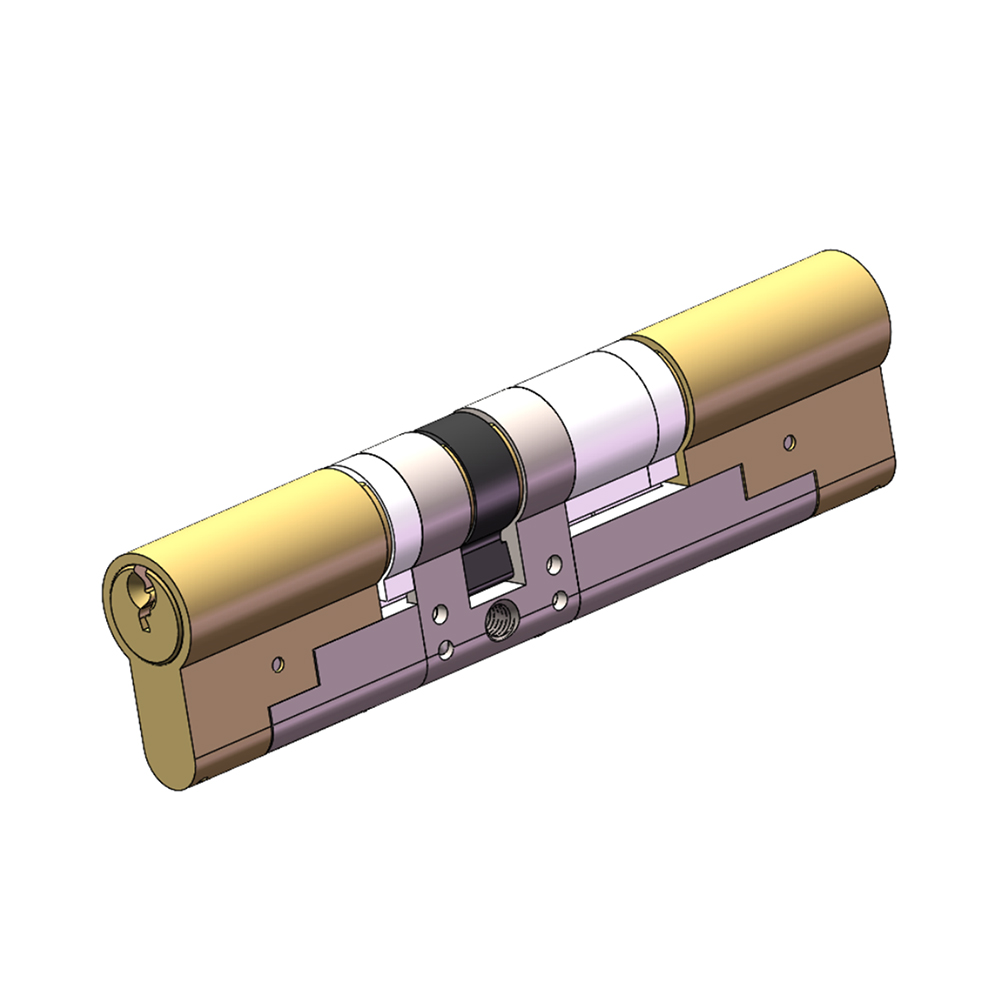

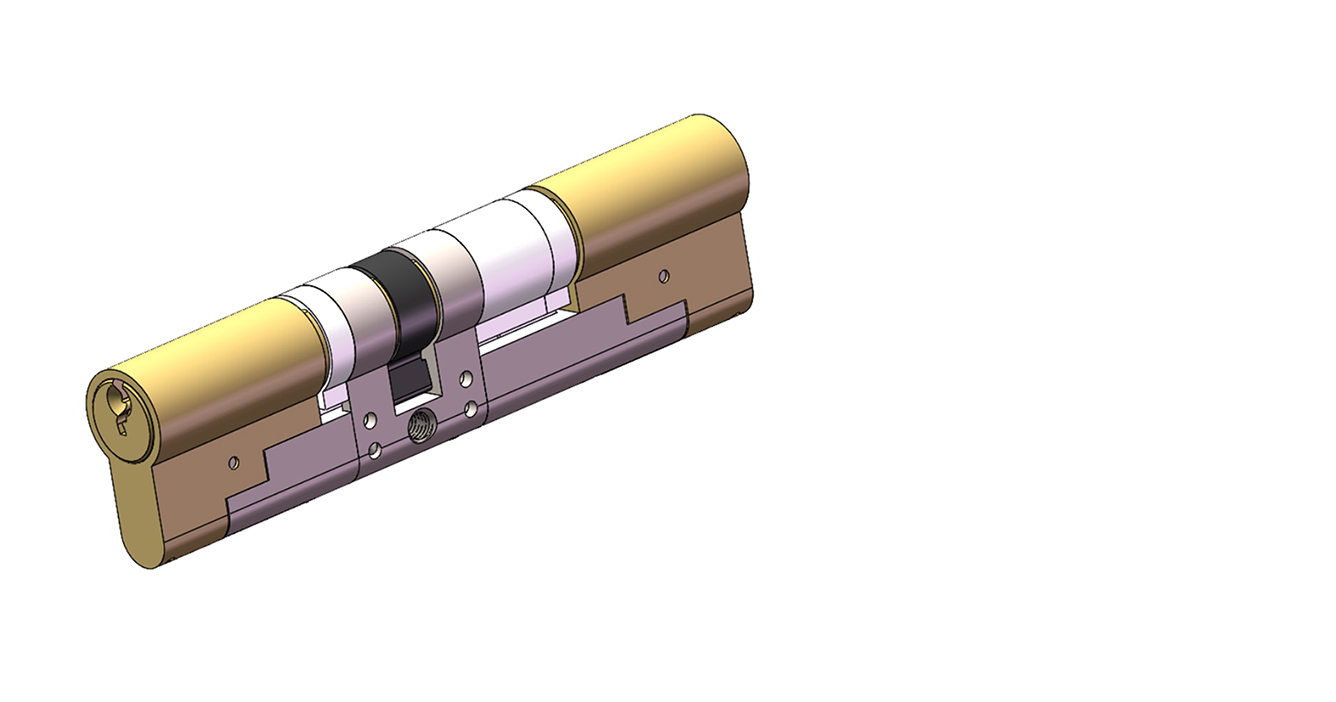

Module lock cylinder

Surface	Brushed stain nickel
Description	Euro profile door half lock cylinder cylinder is with 5 pins european standard S groove with 3 keys
Model number	3345-11
Product code	3345-11
Material	Brass material
Security level	9

Details
Specification

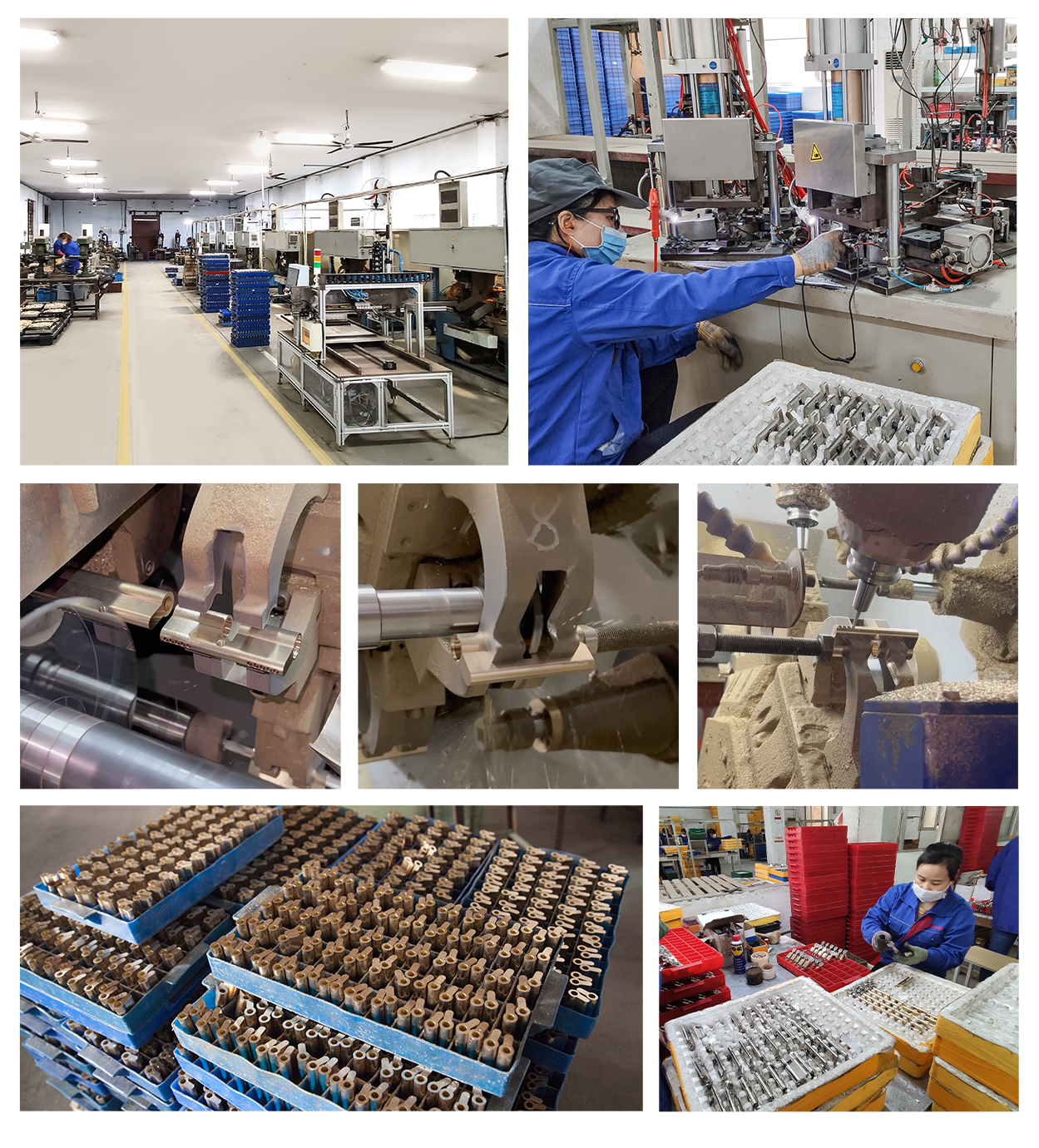

Factory
FAQ

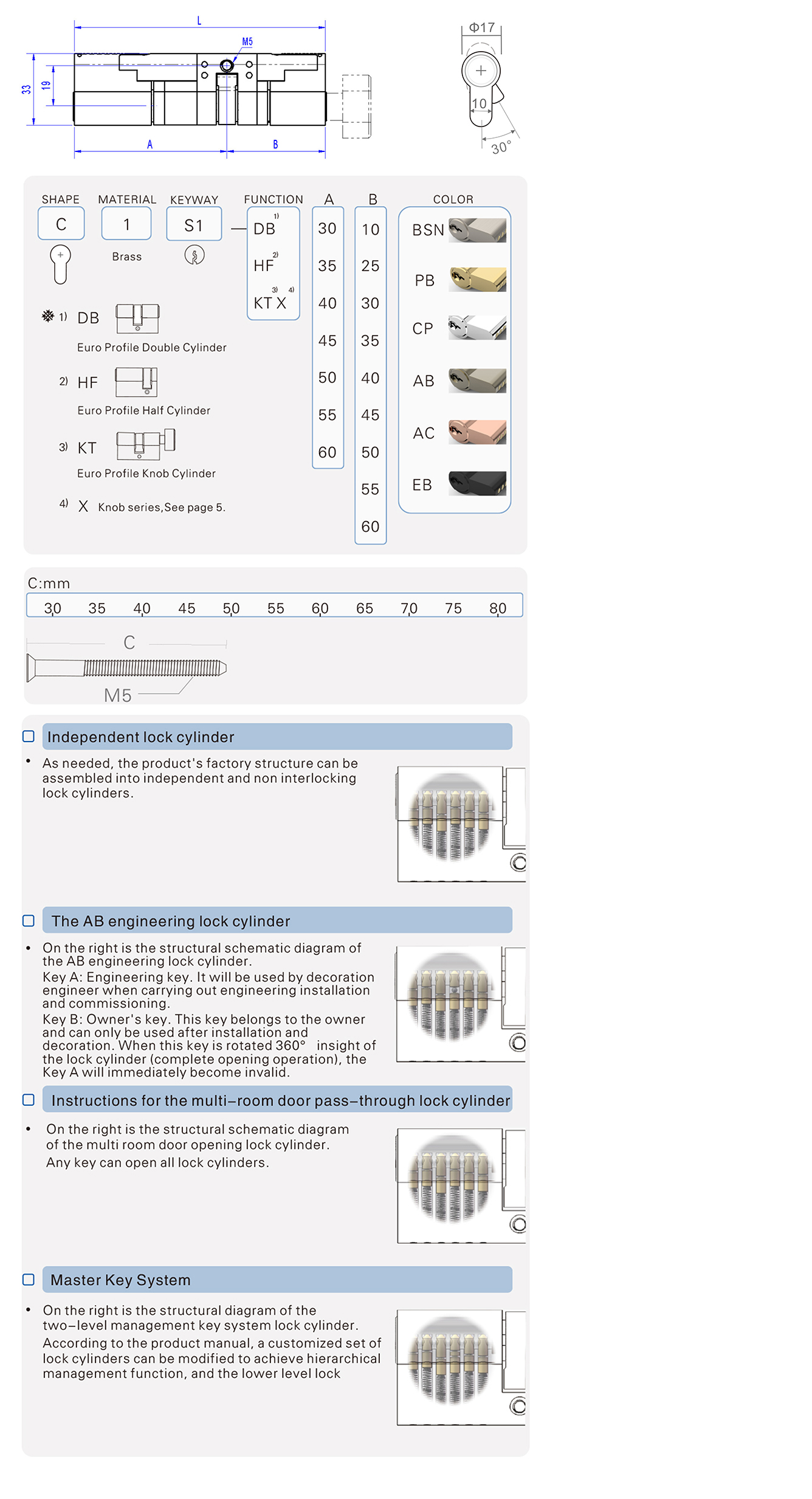

1. K1, K2,...... Kn are employee keys: the users who hold the first level keys, can only open its own lock cylinder.
2. MK1, MK2,...... MKn management key: the users who hold this second level master key, can use the key to open all of the authorized lock cylinder which belongs to the corresponding group, but can not open other unauthorized group.
3. GMKn management key: the user who hold this third level master key, can use the key to open all lock cylinders in the all groups.
4. GGMK management key: The GGMK groove 0 is a management slot shape that can be matched and inserted into any key slot in the lower group (GMKn), but the lower group (GMKn) cannot be inserted into each other. The user who hold this fourth level master key, can use the key to open all lock cylinders in the all groups.
5. According to different management requirements, we can customize making the corresponding level, group and number of members.

30/30	35/35	40/40	45/45	50/50	55/55
30/35	35/40	40/45	45/50	50/55
30/40	35/45	40/50	45/55	50/60
30/45	35/50	40/55	45/60
30/50	35/55	40/60	45/65
30/55	35/60	40/65
30/60	35/65	40/70
30/65	35/70
30/70
30/80
30/90
30/100
