DIY Custom Key System

Surface	Brushed stain nickel
Description	Euro profile door half lock cylinder cylinder is with 5 pins european standard S groove with 3 keys
Model number	3345-11
Product code	3345-11
Material	Brass material
Security level	6

Details
Specification
Factory
FAQ

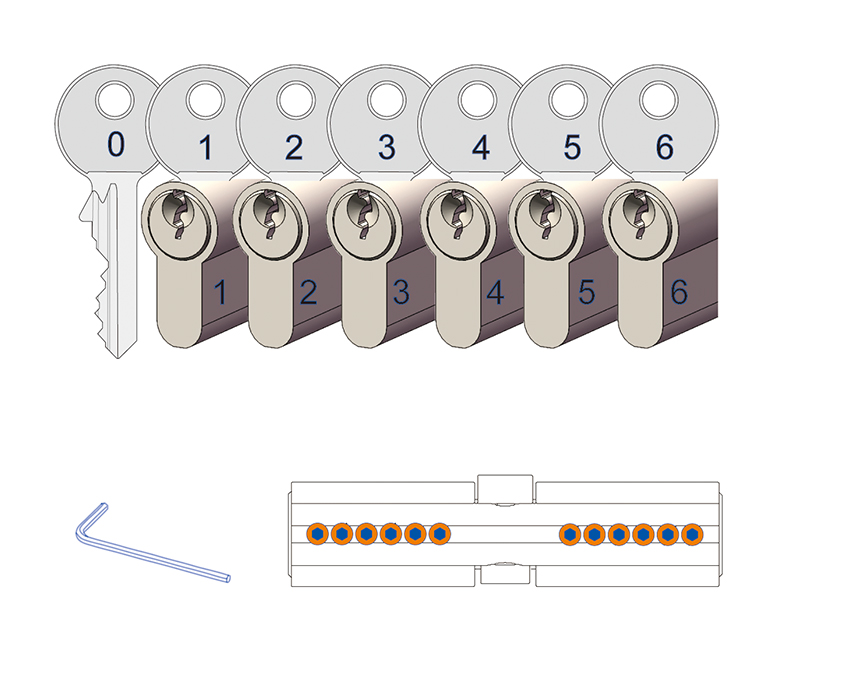

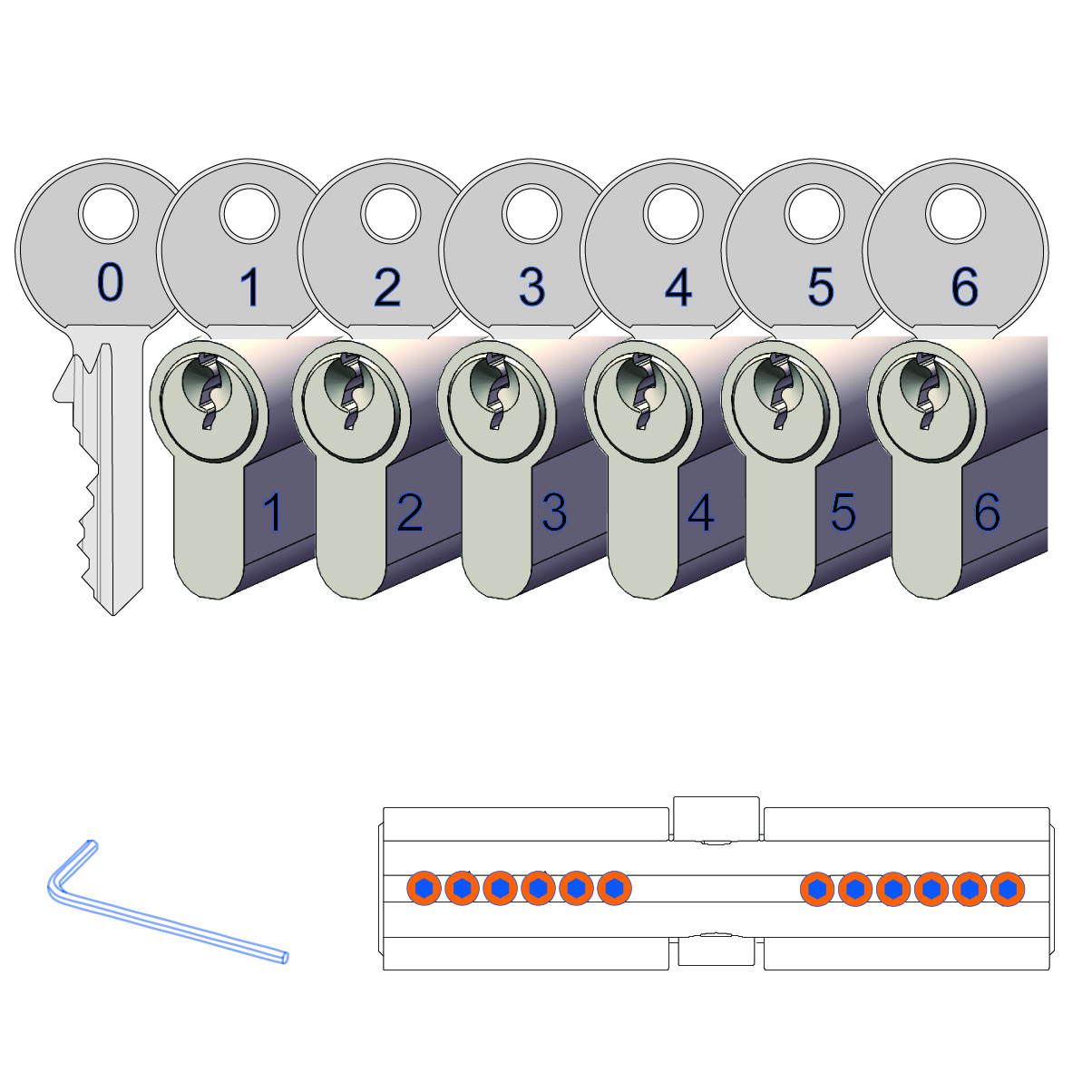

1. This project product is designed for buyers and professional locksmiths who have a certain understanding of this type of product and enjoy DIY manufacturing. Four typical special solutions have been carefully designed to meet personalized practical needs. Of course, it can also be deeply customized according to the specific situation of actual needs.

2. The main parts and Pins are made of copper material. Encapsulated lock cylinder, using M4x4mm hex socket screws and equipped with a hex wrench for easy disassembly and assembly.

3. The length specifications and functions of the lock cylinder can be customized according to needs, and the number of its Pins can also be customized according to the safety needs of users, as allowed by technical specifications.

4. The surface color of the lock cylinder can be customized according to user needs.

5. DIY production, can be modified according to the product manual, and the required related parts will be packaged separately or in sets according to the predetermined or agreed categories.

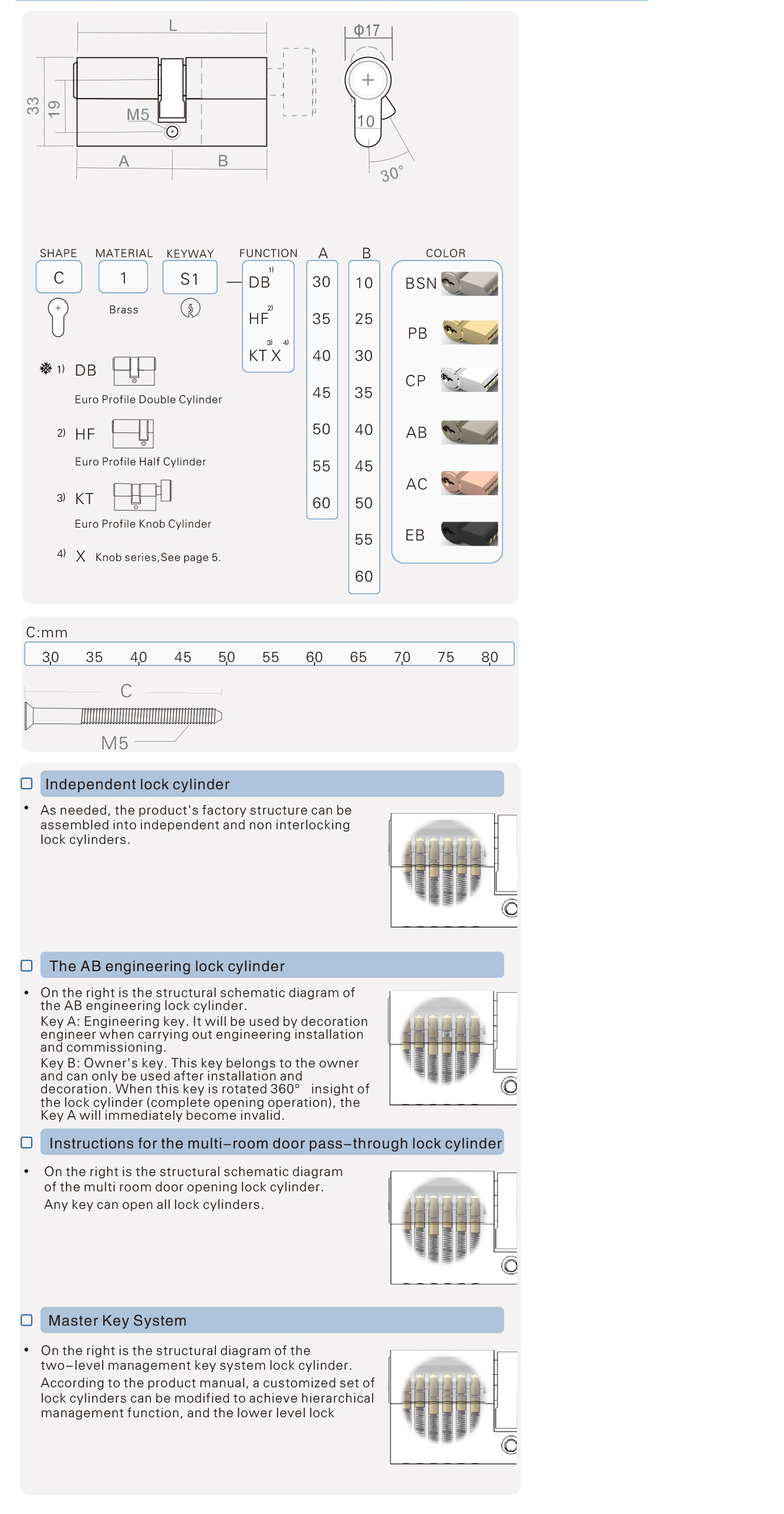

30/30	35/35	40/40	45/45	50/50	55/55
30/35	35/40	40/45	45/50	50/55
30/40	35/45	40/50	45/55	50/60
30/45	35/50	40/55	45/60
30/50	35/55	40/60	45/65
30/55	35/60	40/65
30/60	35/65	40/70
30/65	35/70
30/70
30/80
30/90
30/100
